Product Details

Provide one-stop product services for customers.

● Main use: voltage limiting modular power surge protector, mainly used in the second level lightning protection of power supply systems below 380V, can be used to protect electrical equipment such as distribution boxes, small three boxes, etc. ● Product features: modular design, easy to replace, pluggable and replaceable lightning protection module without power off. ● Customized or not: OEM is accepted, can be customized according to customer requirements.

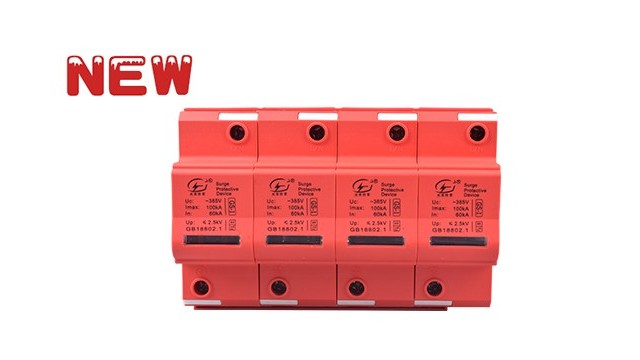

T2 Class 80KA Surge Protector

Model	Nominal Flow Capacity (KA)	Large flow capacity (KA)	Large Continuous Operating Voltage Uc (V)	Response time (ns) ≤	Protection Level Up (KV)	Wiring mode
GS-II-20	10	20	385	≤25	1.5	1P/2P/3P/4P/3P+N
GS-II-40	20	40	385	≤25	1.8
GS-II-60	30	60	385	≤25	2.0
GS-II-65	35	65	385	≤25	2.3
GS-II-80	40	80	385	≤25	2.3
GS-II-100	60	100	385	≤25	2.5
GS-II-120	70	120	385	≤25	2.8
