Product Details

Provide one-stop product services for customers.

● Main use: It is mainly used to protect the stable and safe operation of electrical equipment in thunderstorm weather. ● Product features: Adopt temperature control protection circuit, built-in and protected, stable and reliable work. ● Customized or not: OEM is accepted, can be customized according to customer requirements.

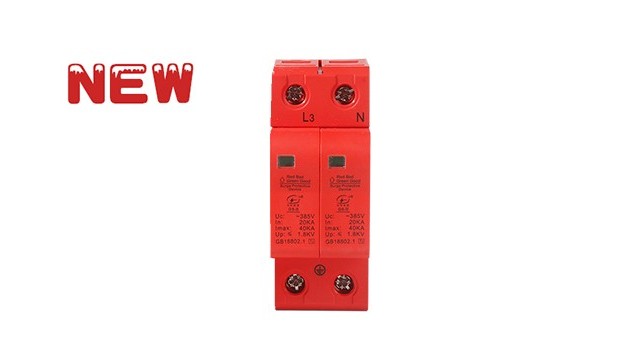

T2 Class 60KA2P Surge Protector

Model	Large flow capacity（KA）	Nominal discharge current（KA）(8/20μs)	Large continuous operating voltage Uc (V)	Response time（ns）≤	level of protectionUp(KV) ≤	Wiring mode
GS-II-20	20	10	220-1500V (AC/DC is selected according to the system voltage)	≤25	≤2.0-3.0	3P/3P+N
GS-II-40	40	20		≤25
GS-II-60	60	30		≤25
GS-II-65	65	35		≤25
GS-II-80	80	40		≤25
GS-II-100	100	60		≤25
GS-II-120	120	70		≤25
