Product Details

Provide one-stop product services for customers.

● Main use: switching type high-energy SPD. It is mainly used for the lightning protection of the front stage of power supply systems below 400V. ● Product features: imported high-energy graphite, stable performance, safe to use. ● Customized or not: OEM is accepted, can be customized according to customer requirements.

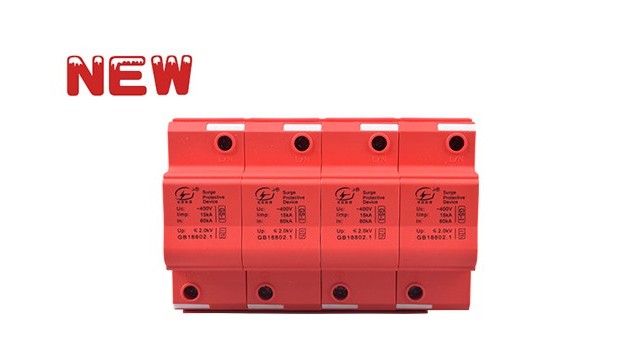

T1 class 50KA surge protector

Model Impulse current（KA）(10/350μs) Nominal discharge current（KA）(8/20μs) Operating voltage（V） Large continuous operating voltageUc (V) Response time level of protectionUp(KV)
GS-I/15/60 15 60 385 400 ≤100 2.0
GS-I/25/80 25 80 385 400 ≤100 2.2
GS-I/35/100 35 100 385 400 ≤100 2.5
GS-I/50/150 50 150 385 400 ≤100 3.0
